mang's pictures of the TikiCrawler!!!
Progress Report!!
27Sept2004 TikiCrawler3000 version 4!
Picture by CatWeasel
21Aug2003
Digital Potentiometer measurements:
0: 0.056 Kohm 127: 5.521 Kohms 255: 10.987 Kohms
Seems like 0.043 Kohm/step.... so 5Kohm / (0.043Kohm/step) = 116.3 steps
116: 5.045 Kohms. yup!
20Aug2003
8Aug2003
Foo made new front suspension! TikiCrawler3000, now with crazy four-wheel action!
6Aug2003
Remote Control steering circuit works :)
24July2003

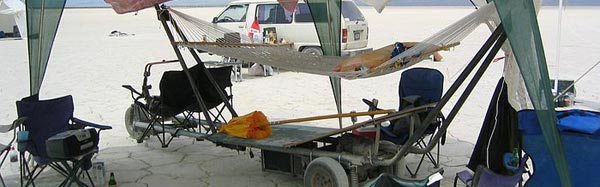

TikiCrawler3000 version 2.0 is born on 18July on 2Cow Playa!!!
Picture by mang, ganked without permission :)
13July2003
Got the Honda 1KW generator today :)
11July2003
I ordered some big-ass solenoid relays (200A!) so hopefully soon we will have forward and reverse. 200A is in fact probably overkill, but that's the way we do it. (mang)
07July2003

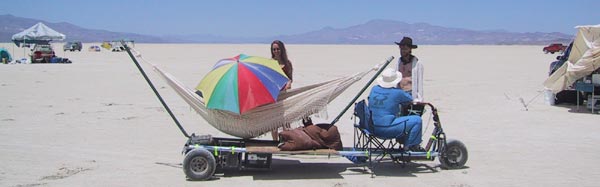

TikiCrawler3000 version 1.0 is born on 4July in BlackRock!!!
Mr Foo is my hero!
01July2003
The motor, she runs!
27June2003
I think it's gonna be hard to find a relay that can do 275A at 24-36VDC at short notice. Starting to think that recovering the forward-neutral-reverse control from the old golf cart and prodding it mechanically (linear actuator?) might be the way to go. Will make fail-safe a bit harder. (mang)
25June2003
[BattleBots] requires use of FM/PPM or FM/IPD for their lightweight class and FM/PCM in their heavier classes. We should consider upgrading to FM before that event in the desert, although if we process the servo signal using an AVR we can potentially do a fail-safe in software.
22June2003
While at the [summer solstice bbq] the hammock frame collapsed under a load of only 5 people! Need to figure out some way of reinforcing the beams.
Foo's current plan for the frame involves two large water pipes with the hammock frame connected by U-bolts. The whole thing should disassemble and be transportable by car.
16June2003
Measurements from RC receiver (when trimmed to center):
- center 1.35ms
- left .9ms
- right 1.8ms
Measurements from Linear Actuator:
- 0 -> 5.47Kohms (zero all the way in)
- 9.9Kohms -> 4.45Kohms (9.9KOhms all the way in)
4June2003
We are now in possession of the linear actuator and big motor speed controller! The next step is to make a control circuit that takes the output of the RC receiver module and positions the linear actuator correctly.
16May2003
Yesterday we got the RC transmitter, receiver module, and electronic speed control!
14May2003
Yesterday we procured the golf cart, hammock, and hammock frame. The hammock holds six people, all smooshed together :)
Parts List
- Golf Cart
- Rope Hammock
- Fatuba Magnum Jr. Transmitter
- Novak NER-2S RC receiver
Source code
/LinearActuatorControl.asm
ideas
front steering mechanism
rear drive module
- some small DC motors [here].
- some large DC motors [here].
- http://www.magmotor.com
here are some R/C motor controllers
- http://www.vantec.com/
- http://www.4qd.co.uk/
- http://www.ifirobotics.com/
- http://robot-solutions.com/
- http://www.robot-power.com/
hobby servo fundamentals
- http://www.winnipegrobotics.com/Pages/Robots/Motors/motors.html
- http://www.futaba-rc.com/servos/digitalservos.pdf
motor controller and wiring
- Our motor controller [Golf Tech Curtis 1204 275 amp]
- 1204 specs and wiring diagram [here]
- 12VDC 40 & 70A relays for golf cart use [here] - cheap but we need more amps
- White-Rodgers DC power contactors [here]
- White-Rodgers Model# 586-914 - [datasheet] [$58 at Allied Electronics]
- rated for 200A on NO contacts, 100A on NC
- http://www.roboteq.com - Expensive, R/C motor controller. Too bad it's $500.
batteries & charging
- the micro closest to the battery could monitor voltage to provide estimated run time and warn (buzzer) when too low
- [charging batteries in series/parallel] - parallel should be okay (lots of other good stuff there too)
- Charger - DLS45 12 volt, 45 amp, 7"x6.75"x3.75", 7 lbs $155 [here]
- Diagram with where to put shunts when using ammeters [pdf]
